High Frequency Ultrasound Scanner 22 MHz Imaging

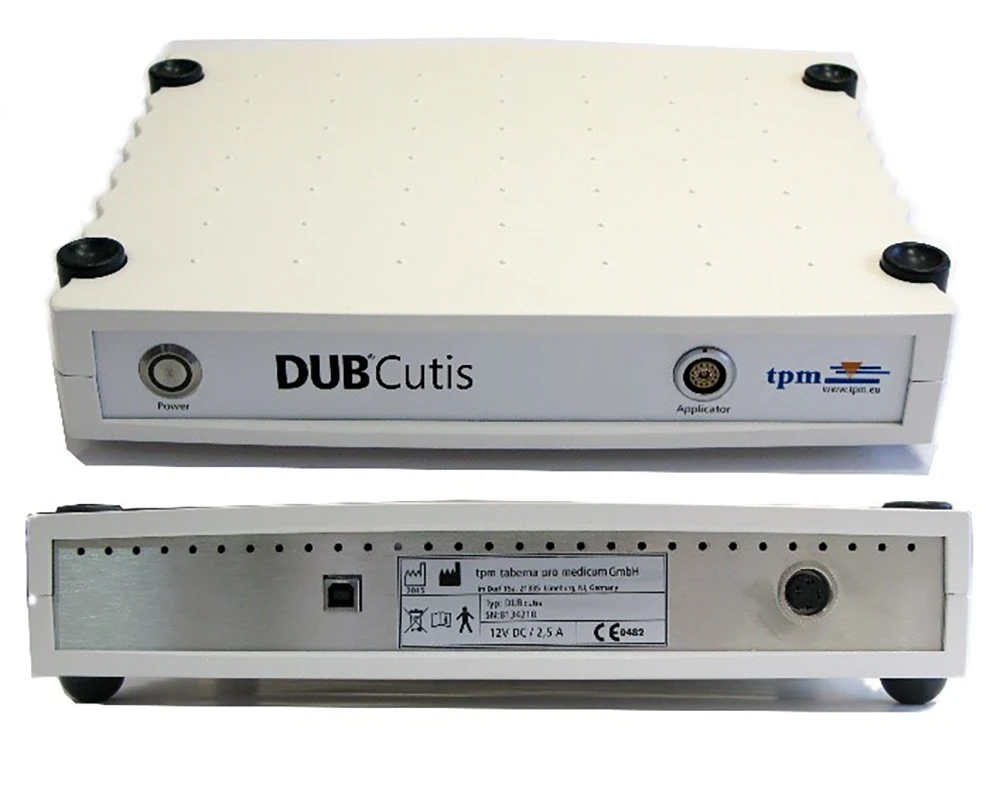

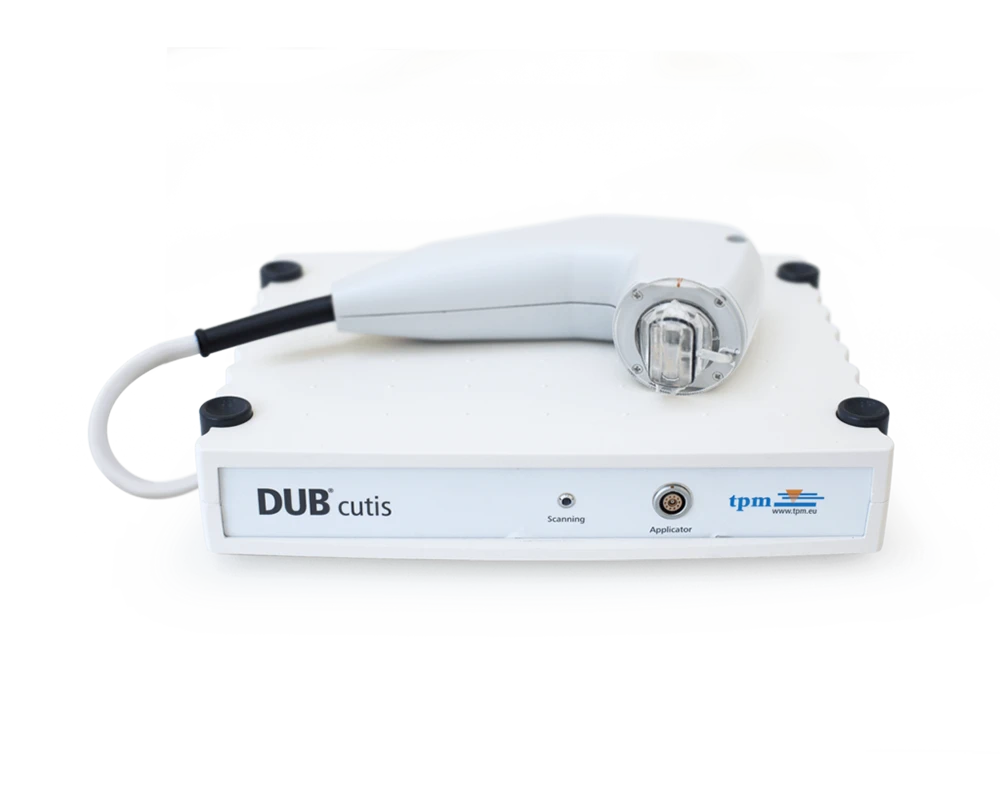

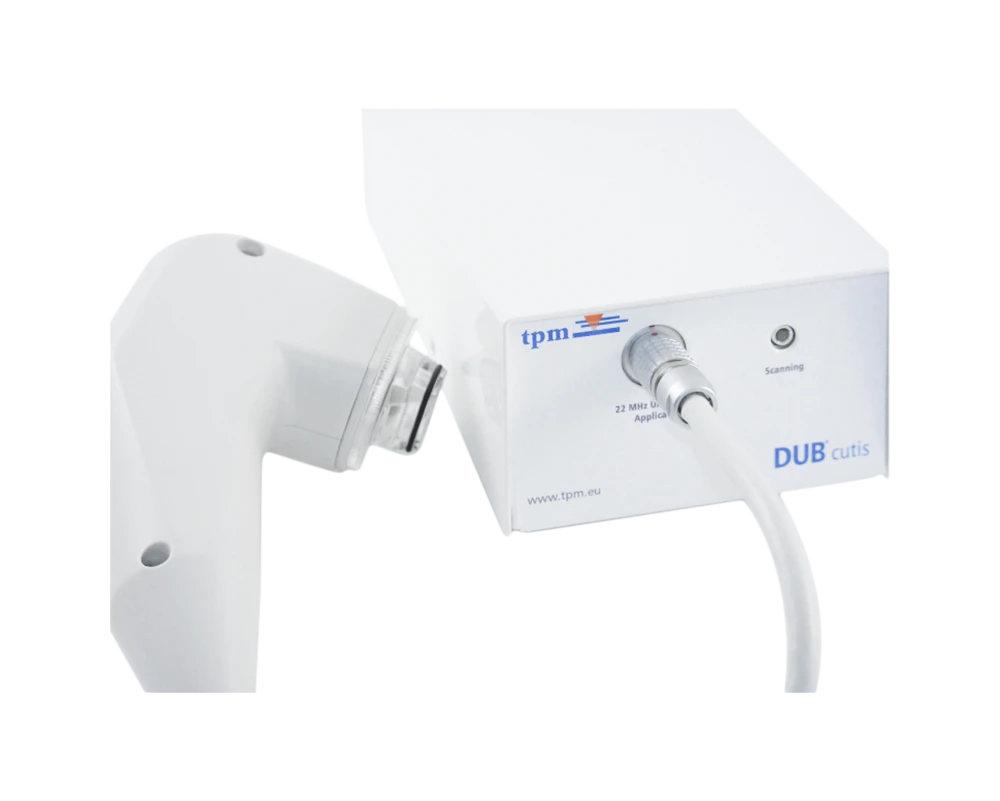

Dub Cutis High Frequency Ultrasound Skin Scanner

Precision Dermal Imaging

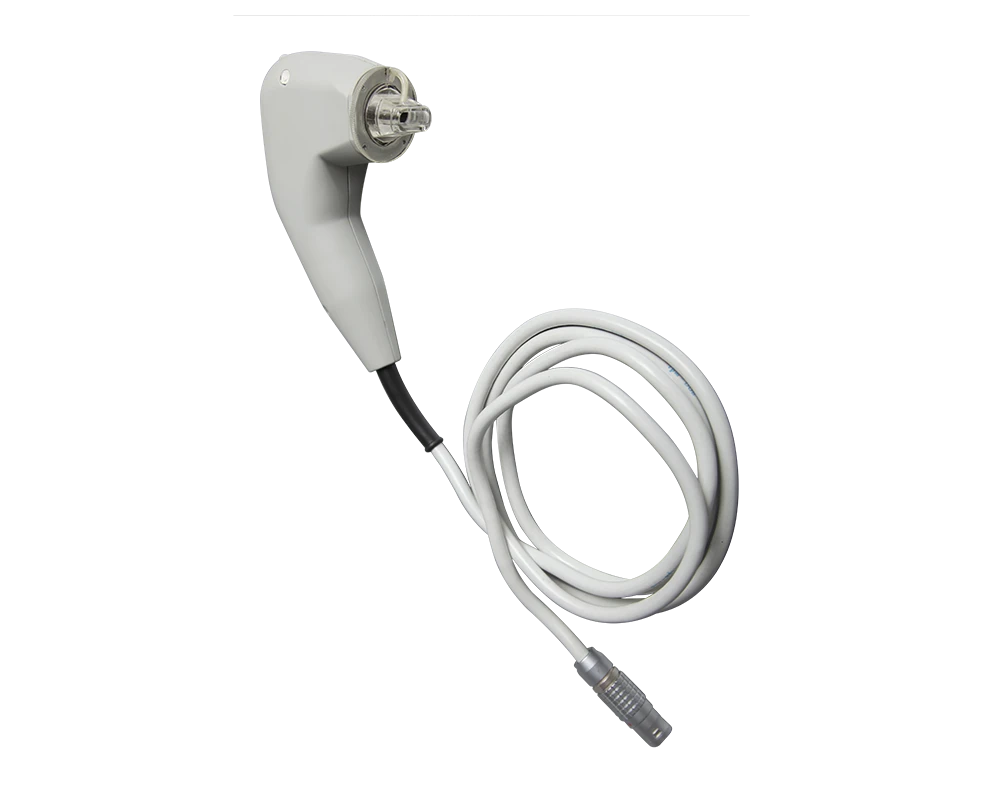

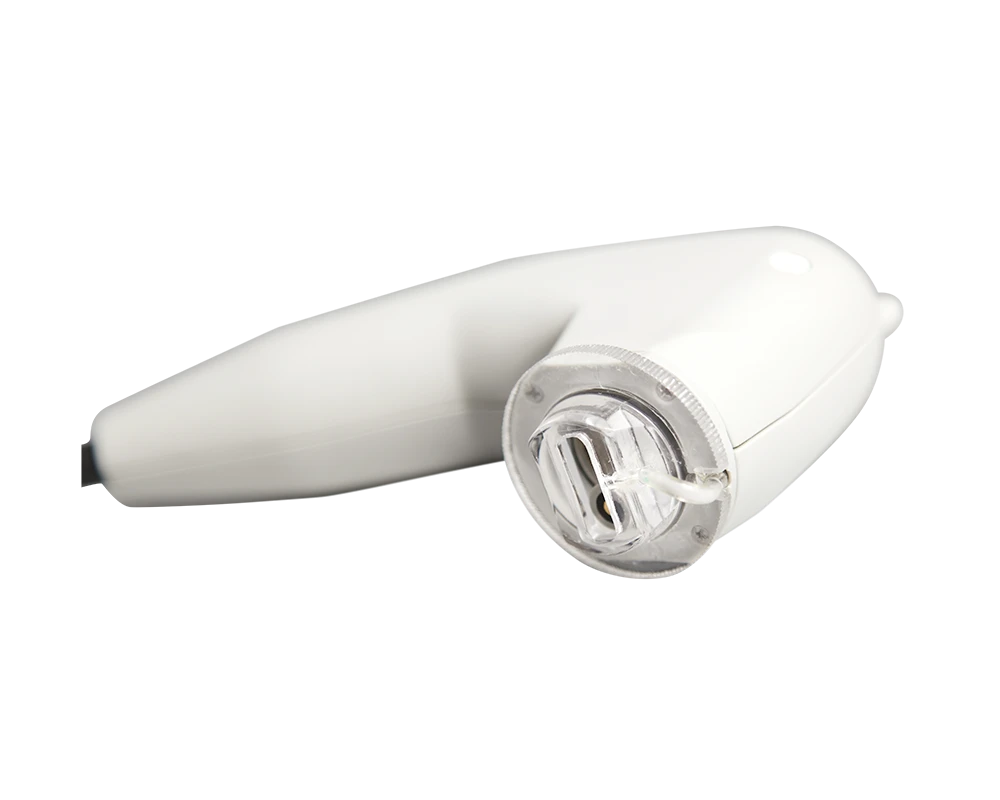

The DUB Cutis High Frequency Ultrasound Skin Scanner is the entry level standard for non invasive digital skin analysis. Designed for dermatologists and plastic surgeons, this compact system utilizes a powerful 22 MHz probe to generate high resolution cross sectional images of the epidermis and dermis, allowing for precise measurement of skin thickness and density without the need for biopsy.

Technical Specifications

Frequency Range 22 MHz to 30 MHz dynamic range Axial Resolution 57 microns at 28 MHz for crystal clear tissue differentiation Scanning Depth 8 mm max penetration sufficient for full skin thickness analysis Scan Width 12.8 mm linear scan with a 33 micron step width

Key Diagnostics

Viewing Modes Includes B Scan for 2D cross section A Scan for amplitude spikes and Sum A for density analysis Measurements Automatically calculates skin thickness density and lesion depth Connectivity Plug and play USB 2.0 or 3.0 connection to any standard Windows PC or Laptop

✅ Request a Quote to bring advanced imaging to your clinic.

SKU: N/A Category: Tags: , , , , , , , , Brand:

Description

High Frequency Ultrasound Skin Scanner for Dermatology

Elevate your diagnostic capabilities with the DUB Cutis High Frequency Ultrasound Skin Scanner from Ace Medical. In modern aesthetics and dermatology, looking beneath the surface is critical for safe and effective treatment planning. Standard medical ultrasound units are often too powerful to image superficial structures, blowing past the skin entirely. The DUB Cutis system offers a specialized 22 MHz solution, providing a streamlined and user friendly entry point into cutaneous ultrasound that reveals what the naked eye cannot see.

Clinical Applications for Skin Analysis

Pre Operative Planning Before performing biopsies or excisions, use the High Frequency Ultrasound Skin Scanner to determine the exact depth and boundaries of tumors or lesions. This data helps in planning surgical margins and reducing the risk of incomplete removal or unnecessary tissue trauma. Aesthetic Medicine and Fillers Visualize the placement of dermal fillers and monitor their integration over time.

The scanner allows you to measure the thickness of the dermis to assess collagen production following rejuvenation treatments like RF Microneedling or Laser Resurfacing, providing objective data to show patients their progress. Chronic Skin Conditions Monitor the progression or remission of inflammatory skin diseases such as psoriasis or scleroderma by quantifying changes in skin density and thickness with the automated measurement tools.

Powerful Software Integration

The DUB Cutis connects directly to your computer via USB, turning your workstation into a powerful imaging center. DUB SkinScanner Software The included software suite is compatible with all Windows operating systems. It offers intuitive tools for measuring length area and density.

Personalized Reporting Generate professional reports with high resolution images including your clinic name and the physician details directly on the scan printout. Loop Function Capture and review cine loops of the scan to analyze tissue characteristics in motion ensuring no detail is missed during the examination.

✅ Select Request a Quote from the menu above to configure your imaging system.

Additional information

System

Dub Cutis 22-30MHz
